our organization, 'Torr Marketing India Private Limited' commenced its operations as a limited
liability firm. Owing to features like precision design,
functioning and high efficiency, our
products are being used in vacuum, pneumatic, hydraulic & electronic sectors.

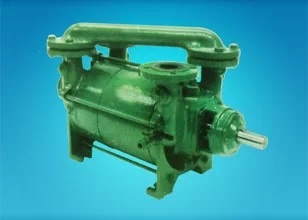

The stator has one inlet and another outlet connection opposite to each other and a separate water/liquid inlet connection is also provided either in the main casing or through the side cover.
While the pumps starts rotating water/liquid is introduced through a water/liquid inlet port and due to rotary movement of the impeller the ring is formed which is concentric to the stator (casing).
| Model | Capacity Open Suction | Motor H.P. | R.P.M. | Sealing Liquid L.P.M. | |
|---|---|---|---|---|---|
| M3/Hr | CFM | ||||
| TLRD 50 | 50 | 30 | 3 | 3000 | 6 |
| TLRD 90 | 90 | 53 | 5 | 3000 | 9 |
| TLRD 120 | 120 | 70 | 7.5 | 3000 | 12 |
| TLRD 160 | 160 | 95 | 7.5 | 1440 | 15 |
| TLRD 200 | 200 | 118 | 10 | 1440 | 18 |
| TLRD 350 | 350 | 207 | 15 | 1440 | 30 |
| TLRD 440 | 440 | 261 | 20 | 1440 | 35 |
| TLRD 500 | 500 | 296 | 25 | 1440 | 40 |
