Electronic Vacuum Gauges

Pirani Gauge is an electronic Instrument used for measuring the High vacuum levels upto 10-3 Mbar with both Analog with Digital output.These are very commonly used by the research lab and R & D Centres for getting a continuous signals and maintaining the consistent records statics.

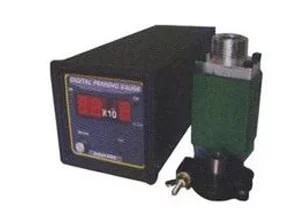

Penning Gauge is an electronic Instrument used for getting the read outs of the Ultra High Vacuum the range of the Penning Gage starts from 10-3 Mbar to 10-7 Mbar.These are very commonly used by the research lab and R & D Centres for getting a continuous signals and maintaining the consistent records statics.

Dry Vacuum Pump Oil Lubricated

Model	Nominal Pumping Speed		Max.Vacuum	Operating Vacuum	Max.operating Pressure	Power Required /RPM
			( mm Hg)	(mmHg)	(psig)	(Hp /RPM)
	Litres/min	m3/hr
TDV-75	75	4.5	710	710	-	0.25/1440
TDV-150	150	9	710	710	5	0.50/1440
TDV-225	225	13.5	710	710	5	0.75/1440
TDV-300	300	18	680	680	5	1.00/1440
TDV-500	500	30	635	550	5	2.00/1440
TDV-1000	1000	60	635	550	-	3.00/1440
TDV-1500	1500	90	635	550	-	5.00/1440

Mono block- Dry Vacuum Pumps (Low Vacuum)

Model	Nominal Pumping Speed		Max. Vacuum	Power required / RPM
	Litres / min	M3/Hr
TDV-50-M	50	2.9	650	0.25/2880
TDV-100-M	90	5.4	650	0.33/2880
TDV-150-M	150	9	650	0.50/1440
TDV-300-M	300	18	650	1.00/1440

Dry Vacuum Pumps(Self Lubricated)

Model	Nominal Pumping Speed		Max.Vacuum	Operating Vacuum	Max.operating Pressure	Power Required /RPM
			( mm Hg)	(mmHg)	(psig)	(Hp /RPM)
	Lts/min	m3/hr
TDV-150-C	150	9	650	550	5	0.50/1440
TDV-300-C	300	18	650	550	5	1.00/1440
TDV-500-C	500	30	650	550	5	2.00/1440
TDV-1000-C	1000	60	635	550	5	3.00/1100
